Electric Control System Fireproof Environmental Friendly Divider Curtain Partition Curtain

Electric Control System Fireproof Environmental Friendly Divider Curtain Partition Curtain

Наименование марки:	Flyon
Номер модели:	разделитель занавес
МОК:	50 кв
цена:	46-98 dollars per sqm
Условия оплаты:	Т/Т, Вестерн Юнион
Способность к поставкам:	> = 50000 кв. М/месяц

Подробная информация

Характер продукции

Подробная информация

Место происхождения:

Китай

Сертификация:

SGS/GB-8624 (B2 level)

Материал:

ПВХ/ высокопрочная ткань

Цвет:

Запрос клиента

Шаблон:

Настраиваемый

Экологическая эффективность:

GB-18586

Воздухопроницаемость:

> 45%

Сопротивление разрыву:

GB/T 3917.3-2009

Упаковывая детали:

Деревянные коробки

Поставка способности:

> = 50000 кв. М/месяц

Выделить:

Electric Control System Divider Curtain

Fireproof Partition Curtain

Environmental Friendly Dividing Curtain

Характер продукции

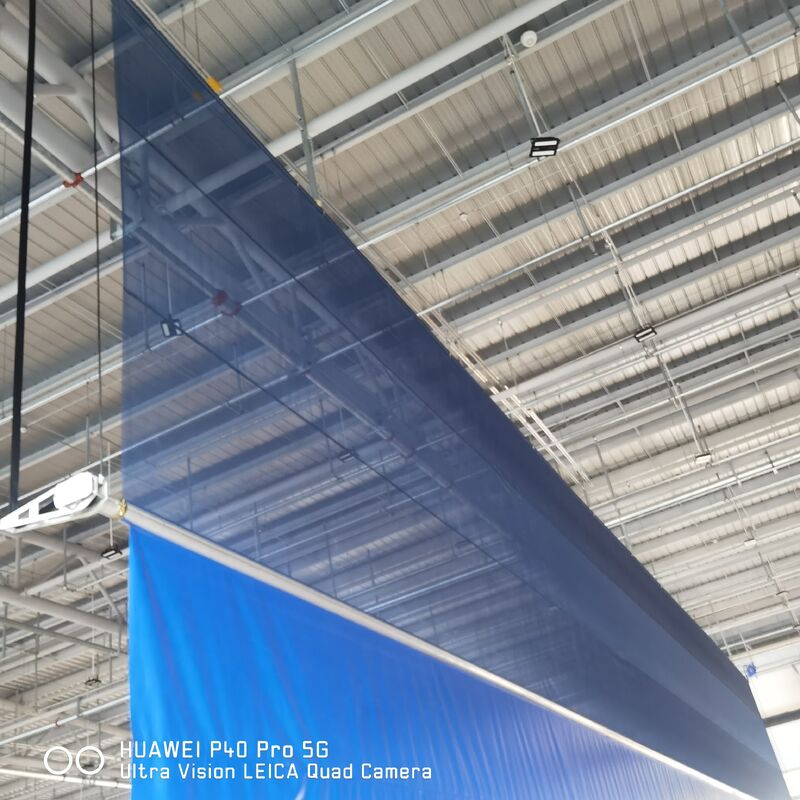

Electric Control System Fireproof Environmental Friendly Divider Curtain Partition Curtain

Special discounts available for new and existing customers.
Contact us for specific discount details.

Single Curtain System Specifications

Product Name	Divider Curtain	Total Hanging Weight	≤ 2.5 kg/m
Maximum Height	12m	Hanging Spacing	≤ 3m
Maximum Width	36m	Maximum Bearing Capacity (per lifting point)	≤ 80kg
Maximum Area	300m²	Maximum Hanging Weight	≤ 750kg

Color Options

Model Variations

Installation Safety Requirements

• A safety gap of at least 50 cm should be reserved between this partition curtain system and adjacent partitions or walls
• A safety clearance of at least 15 cm should be maintained on the side without motor drive system
• At least 5 cm ground clearance shall be reserved between the bottom of the partition curtain and the ground

Electric Control System Features

High-performance drum motor (220V, 450W, 120N/M)
Internal planetary gear reducer for smooth operation
Up-and-down position brake limiter for precise control
Push-button limit switch with automatic reset
Thermal overload protection system for safety
All components integrated in middle winding drum for reliability

Product Advantages

Double layer curtain with high-quality PVC for superior sound absorption
Partial netting design allows natural light transmission
Complete system includes all necessary materials and segments with aluminum truss carrier structure
Environmentally friendly construction with tear resistance and high strength
Fireproof materials for enhanced safety
User-friendly operation with various customization options available

Project Gallery
